TMT Bars (Fe 500 / Fe 500D): Price per kg, Rod Weights and Delivery

TMT bar price and weight by diameter

Steel moves with the market, so the date next to the price is part of the price. Retail counters in Chennai quoted roughly ₹54–73 per kg in September 2026, depending on brand and shop.

Next question: Fe 500 or Fe 500D? Use the grade on your structural drawing; the D grade bends further before it breaks. The comparison is next. More

Fe 500 vs Fe 500D vs Fe 550D under IS 1786

We stock Fe 500 and Fe 500D. If your drawing calls for Fe 550D, say so in the quote request.

Next question: Which diameter goes where? Typically 8 mm for stirrups, 8–10 mm for slabs, 12–16 mm for beams, columns and footings, as designed. More

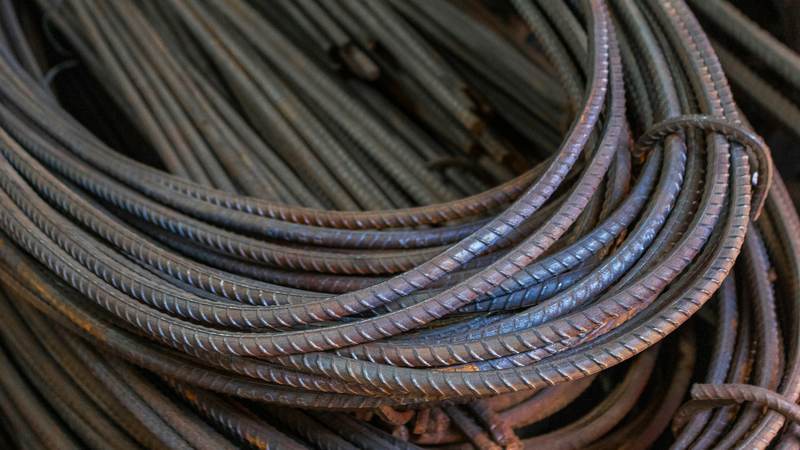

What TMT bars are

TMT (thermo-mechanically treated) bars are ribbed steel reinforcement bars quenched with water right after rolling, which leaves a hard outer layer around a softer, ductile core. In Tamil the trade simply says kambi.

They are one kind of HYSD (high-yield strength deformed) bar; older HYSD bars were cold-twisted instead. In India they are made to IS 1786.

Next question: What does the D in Fe 500D mean? Ductility: lower carbon, sulphur and phosphorus limits and 16% minimum elongation against 12%. More

Choosing diameters and quantities

The structural drawing and its bar bending schedule (BBS) decide sizes and lengths, so order from the BBS. As a typical pattern in Chennai houses, 8 mm goes into stirrups and rings, 8–10 mm into slabs and 12–16 mm into beams, columns and footings.

Bigger frames use 20–25 mm where designed. For sites close to the sea, such as Ennore or Pulicat, ask your designer whether corrosion-resistant (CRS) bars or extra cover are needed.

Next question: Roughly how many tonnes for a house? Typically 3.5–4.5 kg per sq ft of built-up area; the table below has the working. More

How much steel for a house? Typical estimates

Typical estimates: for budgeting only; the BBS decides the order.

Soil, spans, number of floors and the designer's detailing move these figures a lot. Use them to budget, then order from the BBS.

Next question: Will it fit in one trip? A long-body lorry carries up to about 18 t, so most house orders go in one trip. More

Checks when TMT bars arrive

1. Match the invoice to the bundles: grade, diameter, number of bundles and weight.
2. Look for the rolled-in maker's mark and grade on the bars; unmarked bars are a reason to stop.
3. Weigh three bars of each size and compare with d² ÷ 162 x length; a clear shortfall means undersize bars.
4. Ask for the factory test certificate for the batch; it lists yield stress, tensile strength and elongation.
5. Accept a thin, even brown surface rust; flaky rust or pitting means long, wet storage.

Next question: How should I store the bars? Off the ground, by diameter, covered in the monsoon. More

Storing TMT bars on site

• Keep bars off the ground on timber or block supports, about 150 mm high, at several points along the length.
• Stack by diameter and tag each stack so 10 mm does not end up where 12 mm is drawn.
• Cover with a tarpaulin in the monsoon and near the coast, where sea air speeds up rusting.
• Do not bend and straighten bars again; it weakens them.

Next question: Is light rust a problem? A thin, even brown layer is normal; brush off loose, flaky rust before concreting. More

Mistakes to avoid when buying TMT bars

• Comparing per-rod prices without the rod weight: a lighter 12 mm rod is a thinner bar.
• Mixing grades in one element: keep to the grade on the drawing.
• Ordering from a thumb rule instead of the BBS, then running short in the middle of a pour.
• Forgetting the 18% GST when comparing quotes; it moves the total more than a ₹1 per kg difference.

Next question: What is the delivered price in my area? The table on this page adds freight from the nearest yard or factory. More

Where our TMT bars come from

Bars come direct from factories in Gummidipoondi SIPCOT and from factories in other places. All six stock yards hold them: Madhavaram, Uthukottai, Vengal Koot Road, Sathyavedu, Kavaraipettai Main Road and Manellore SIPCOT.

Next question: Which yard serves my site? The nearest one holding your sizes; the delivered table names it for each area. More

TMT Bars: delivered price by area

Delivered price per kg = yard price + freight from the nearest yard or the Gummidipoondi SIPCOT factories (estimated road km x the per-tonne slab ÷ 1,000), before 18% GST.

Next question: how much do I need? Quantity calculator · Delivered-cost estimator

How to order TMT bars

1. Send the bar schedule or the tonnes per diameter, the grade on your drawing and the site location: WhatsApp, call or the quote form.
2. We confirm the price per kg for each diameter, the nearest yard and the delivered total with GST.
3. Check the bundles against the invoice and the rolled-in marks before the lorry leaves.
